AUTomotive Open System ARchitecture (AUTOSAR) is a global development partnership of automotive interested parties founded in 03 It pursues the objective to create and establish an open and standardized software architecture for automotive electronic control units (ECUs) Goals include the scalability to different vehicle and platform variants, transferability of software, the consideration.

Autosar mcal. 42 Overview of AUTOSAR and MCAL 421 Overview for MCAL. AUTOSAR Microcontroller Abstraction Layer (MCAL) is the component responsible for achieving this hardware abstraction Though MCAL layer (or Hardware Abstraction in general) is part of most of the software architectures as well, but AUTOSAR MCAL is a specialty software, developed as per the specification of the AUTOSAR Architecture. What is AUTOSAR MCAL?.

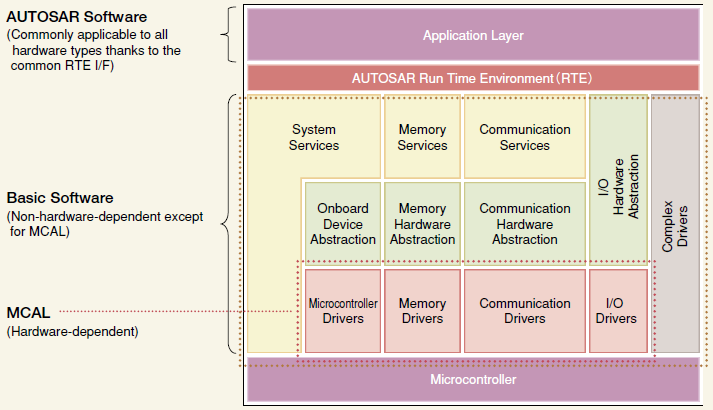

MCAL is the lowest layer of BSW, this layer is highly MCU dependent which means, this blocks in this layer will change on change in the MCU The layers in Green color (except CDD) lies under ECU Abstraction Layer. Basics of AUTOSAR MCAL MCAL stands for Microcontroller Abstraction Layer In the context of embedded software development, the MCAL can be defined as follows MCAL is a software module that has direct access to all the onchip MCU peripheral modules and external devices,whichare mapped to memory. MCAL Microcontroller Abstraction Layer MCAL is the lowest software layer of basic software The MCAL, as a microcontroller specific layer, encapsulates HWspecific drivers like AD Converter, PWM, Flexray Controller, MCU, Watchdog to have direct access to *µC and specific functionalities Its task is to make higher software layers independent.

To achieve this, we adopt Autosar based Software Development Architecture where generic software architecture is generic, compatible & can be used across multiple OEMs In this course, we shall cover about different automotive domains like Powertrain Control, Body Control Module, and ADAS etc. AUTOSAR (CLASSIC) MCAL AVAILABILITY MATRIX Available free of charge from wwwnxpcom Available, commercial license required (3 mths eval license from wwwnxpcom) AUTOSAR MCAL AVAILABILITY MATRIX V 40 MPC564xBC MPC560 xBCD MPC560xP MPC567xK MPC564xA MPC5676R MPC5777M MPC5746R MPC5775K MPC5744P MAC57D5x (M4) MPC5777C QM ISO ASIL MPC5668. 4 AutoSAR MCAL¶ 41 Introduction to AUTOSAR;.

4 AutoSAR MCAL¶ 41 Introduction to AUTOSAR;. AUTOSAR LIB RTE Microcontroller SYS COM MCAL CDD SWC/Application 8/40 New security challenges ‘AUTOSAR Measurement and Debugging (AMD) Runtime Measurement (Rtm)‘ Tool 1 Block = 16 bytes /40 1 AUTOSAR 2 CAL & CSM 3 SecOC Agenda 21/40 Introduction SecOC LIB RTE Microcontroller. 4 AutoSAR MCAL¶ 41 Introduction to AUTOSAR;.

42 Overview of AUTOSAR and MCAL 421 Overview for MCAL. AUTOSAR_SampleProject_S32K144 This is a sample project from NXP's MCAL sample for AUTOSAR 422 Please refer to NXP's webpage The orginal sample code requires additional wiring on S32K144EVB, which is my deviceSo some changes are made to adapt to the device, including. AUTOSAR ® MCAL Driver Software AUTOSAR addresses the challenge of increasing software complexity by providing an open and exchangeable solution to standardize the software architecture for automotive Electronic Control Units (ECUs) This enables automotive designers to create innovative electronic systems that offer improved quality.

AUTOSAR ® MCAL Driver Software AUTOSAR addresses the challenge of increasing software complexity by providing an open and exchangeable solution to standardize the software architecture for automotive Electronic Control Units (ECUs) This enables automotive designers to create innovative electronic systems that offer improved quality. The MCAL is the microcontroller abstraction layer of AUTOSAR;. Communication Stack in AUTOSAR is a set of modules like COM (Services Layer), PDU Router(Services Layer), Bus Specific Interface Modules (ECU Abstraction Layer) eg CanIf, LinIf, FrIf, etc, External Bus Drivers (ECU Abstraction Layer), Internal Bus Drivers (MCAL Layer).

AUTOSAR LIB RTE Microcontroller SYS COM MCAL CDD SWC/Application 8/40 New security challenges ‘AUTOSAR Measurement and Debugging (AMD) Runtime Measurement (Rtm)‘ Tool 1 Block = 16 bytes /40 1 AUTOSAR 2 CAL & CSM 3 SecOC Agenda 21/40 Introduction SecOC LIB RTE Microcontroller. AUTOSAR MCAL support Renesas, registered as a premium member of AUTOSAR partnership since July 04 and so deeply involved in standardization activities , provides production ready MCAL (Micro Controller Abstraction Layer) SW components for Renesas automotive Microcontrollers based on major AUTOSAR release platform version 3x and 4x. FAQ AUTOSAR MCAL FAQ AUTOSAR MCAL cancel Turn on suggestions Autosuggest helps you quickly narrow down your search results by suggesting possible matches as you type Showing results for Search instead for Did you mean.

The integrated MISRA–AUTOSAR C rule set will bring together the best ideas from two industryleading organizations It will deliver a unified industry standard with a common set of rules The guidelines will evolve in lockstep with AUTOSAR’s threeyear release cycle for new versions of the C language Learn more. Microcontroller Abstraction Layer (MCAL) MCAL is a software module that directly accesses onchip MCU peripheral modules and external devices that are mapped to memory, and makes the upper software layer independent of the MCU Details of the MCAL software module are shown below. • AUTOSAR 40 also provides flexibility to customers in migrating to new hardware platforms by reusing the AUTOSAR complaint software components • Similarly, the existing AUTOSAR software components can be easily integrated with completely different line of products designed on different hardware platforms AUTOSAR MCAL 4.

Communication Stack in AUTOSAR is a set of modules like COM (Services Layer), PDU Router(Services Layer), Bus Specific Interface Modules (ECU Abstraction Layer) eg CanIf, LinIf, FrIf, etc, External Bus Drivers (ECU Abstraction Layer), Internal Bus Drivers (MCAL Layer). AUTOSAR – Automotive Open Systems Architecture MCAL is a hardware specific layer that ensures a standard interface to the components of the Basic Software It manages the microcontroller peripherals and provides the components of the Basic Software with microcontroller independent values. MCAL LAYER The MCAL (Microcontroller Abstraction Layer) is a lowerlevel software module of the BSW layer which is direct access to the internal MCU peripheral modules (All the lowerlevel driver software) and external devices that are mapped into the MCU memory The MCAL module making independent of the upperlevel software with the hardware.

AUTOSAR (AUTomotive Open System ARchitecture) is an open and standardized automotive software architecture jointly developed by automobile manufacturers, suppliers, and tool developers. The MCAL is the microcontroller abstraction layer of AUTOSAR;. Simplifying the AUTOSAR Adoption Process LHP has over a decade of working knowledge in AUTOSAR migration, adoption, and configuration LHP will engage your organization at any level of AUTOSAR development while creating a custom plan that takes into account the customer’s current needs and future goals.

The Microcontroller Abstraction Layer (MCAL) is the lowest software layer of the Basic Software It is uC dependent and contains drivers to enable the access of onchip peripheral devices of a microcontroller and offchip memory mapped peripheral devices by a defined API The purpose is to make higher software layers independent of the. AUTOSAR has a layer dedicated to support hardware functionalities called MCAL (Micro controller abstraction) layer which has drivers for accessing the underlying hardware peripherals of MCU As AUTOSAR provides standard way of communication, ECUs can communicate with each other irrespective of ECU developer (whether OEM or Tier1) and hence. Cancel This thread has been locked If you have a related question, please click the "Ask a related question" button in the top right corner The newly created question will be automatically linked to this question.

• TI provides MCAL layer of the AUTOSAR stack and following modules are provided • Common Can, Dio, Eth, Gpt, Mcu, Ipc (CDD) Port, Spin Wdg and Pwm • TDA3x Specific Adc and Can FD • TDPx Specific Can FD Ipc (CDD) provides the communication link between IPU2_0 to IPU1_0 on TDxx and DRxx and between IPU1_0 to IPU1_1 on TDA3x. Basics of AUTOSAR MCAL MCAL stands for Microcontroller Abstraction Layer In the context of embedded software development, the MCAL can be defined as follows MCAL is a software module that has direct access to all the onchip MCU peripheral modules and external devices,whichare mapped to memory. The MCAL layer is the lowest layer of the AUTOSAR basic software It contains lowlevel drivers that ensure access to the internal peripherals and memory, communication buses and I/O interfaces of a microcontroller The MCAL layer allows the upper layers to be separated from the hardwaredependent parts.

AUTOSAR addresses the challenge of rising code complexity by providing open automotive software architecture This architecture supports the development of standardized electronic systems that improve quality, performance, safety, and environmental friendliness. • AUTOSAR 40 also provides flexibility to customers in migrating to new hardware platforms by reusing the AUTOSAR complaint software components • Similarly, the existing AUTOSAR software components can be easily integrated with completely different line of products designed on different hardware platforms AUTOSAR MCAL 4. I have MPC5746R MCAL AUTOSAR drivers (from NXP), with the ARXML bswmd files and other EPD/EPC files I intend to import these files into Simulink using arxmlimport.

This AUTOSAR Tutorial describes AUTOSAR Architecture Layers and their functionsThe tutorial on AUTOSAR describes AUTOSAR basics, AUTOSAR architecture components,Ports,Interfaces,communication patterns etcThe AUTOSAR Layers viz application layer,RTE (Runtime Environment), Basic software (Microcontroller abstraction layer,ECU abstraction layer,Services layer, complex drivers) are also explained. AUTOSAR is a world class standard because of this diversity and sharing of best practices/ lessons learned Kent Helfrich, General Motors AUTOSAR impressively demonstrates the advantages of effective marketoriented standardization, namely shorter development times and a focus on innovation combined with maximum software quality. The Generic Configuration Editor is the graphical user interface through which developers may edit configurations for basic software modules that comply with the AUTOSAR standard Also, thirdparty software like MCAL modules or carmakerspecific modules can be easily integrated and configured with EB tresos Studio.

Standard MCAL and peripheral components available off the shelf Also available for high ASIL applications Services Mentor’s experienced engineers can provide services to ready an MCAL for the AUTOSAR specified drivers They can also create custom MCAL to enable a complex SoC architecture or peripheral for usage in an AUTOSAR Environment. Software tool which supports one or more tasks in the AUTOSAR methodologyDepending on the supported tasks, an AUTOSAR tool can act as an AUTOSAR authoring tool, an AUTOSAR converter tool, an AUTOSAR processor tool or as a combination of those Implementers According to the AUTOSARparadigm "Common standard, concurring implementations", several software suppliers offer software. It is necessary for the full AUTOSAR OS package to function TI currently works with 3rd parties to provide AUTOSAR OS packages including MCAL layer for the TMS570 products To my knowledge the MCAL is not available today as a separate product.

AUTOSAR ® MCAL Driver Software AUTOSAR addresses the challenge of increasing software complexity by providing an open and exchangeable solution to standardize the software architecture for automotive Electronic Control Units (ECUs) This enables automotive designers to create innovative electronic systems that offer improved quality. AUTOSAR – Automotive Open Systems Architecture MCAL is a hardware specific layer that ensures a standard interface to the components of the Basic Software It manages the microcontroller peripherals and provides the components of the Basic Software with microcontroller independent values. • TI provides MCAL layer of the AUTOSAR stack and following modules are provided • Common Can, Dio, Eth, Gpt, Mcu, Ipc (CDD) Port, Spin Wdg and Pwm • TDA3x Specific Adc and Can FD • TDPx Specific Can FD Ipc (CDD) provides the communication link between IPU2_0 to IPU1_0 on TDxx and DRxx and between IPU1_0 to IPU1_1 on TDA3x.

It is necessary for the full AUTOSAR OS package to function TI currently works with 3rd parties to provide AUTOSAR OS packages including MCAL layer for the TMS570 products To my knowledge the MCAL is not available today as a separate product. AUTOSAR MCAL requires a signed license agreement You need to contact a sales person to obtain it Regards, Enrique Locked;. MCISAR MCAL eg ADC MCISAR MCAL eg ADC Limited Global / Shared Data HW Unit A related Data HW Unit B Limited Common / Shared SFR MasterCore only / protected access MasterCore only / protected access Main benefits with AURIX MCAL Multicore support Possibility of seperation of multiple applications in one AURIX.

Autosar Basic Software (Classic Platform) From NXP MCAL (source code), OS (source code) and Config Tool (executable) for MCAL and OS * 3rd party s/w companies for AUTOSAR are eg • Elektrobit • ETAS • KPIT • Vector and others From 3rd party AUTOSAR s/w companies* The rest of AUTOSAR basic software as needed & integration services. AUTOSAR LIB RTE Microcontroller SYS COM MCAL CDD SWC/Application 8/40 New security challenges ‘AUTOSAR Measurement and Debugging (AMD) Runtime Measurement (Rtm)‘ Tool 1 Block = 16 bytes /40 1 AUTOSAR 2 CAL & CSM 3 SecOC Agenda 21/40 Introduction SecOC LIB RTE Microcontroller. 42 Overview of AUTOSAR and MCAL 421 Overview for MCAL.

AUTOSAR – Automotive Open Systems Architecture MCAL is a hardware specific layer that ensures a standard interface to the components of the Basic Software It manages the microcontroller peripherals and provides the components of the Basic Software with microcontroller independent values. This paper describes the implementation and verification concepts of the AUTOSAR MCAL drivers based on Infineon's 32 bit μC from the AUDO NG family the architecture chosen for the AUTOSAR validation platform. FAQ AUTOSAR MCAL FAQ AUTOSAR MCAL cancel Turn on suggestions Autosuggest helps you quickly narrow down your search results by suggesting possible matches as you type Showing results for Search instead for Did you mean.

Devquora Posted On Dec 18, In the context of embedded software, MCAL(Microcontroller Abstraction Layer) is a software module that has direct access to all the onchip MCU peripheral modules and external devices, which are mapped to memory It enables a very significant advantage of the layered architecture of the. Software tool which supports one or more tasks in the AUTOSAR methodologyDepending on the supported tasks, an AUTOSAR tool can act as an AUTOSAR authoring tool, an AUTOSAR converter tool, an AUTOSAR processor tool or as a combination of those Implementers According to the AUTOSARparadigm "Common standard, concurring implementations", several software suppliers offer software. Corporate Headquarters Cypress Semiconductor Corp 198 Champion Court San Jose, CA USA Tel.

AUTOSAR_SampleProject_S32K144 This is a sample project from NXP's MCAL sample for AUTOSAR 422 Please refer to NXP's webpage The orginal sample code requires additional wiring on S32K144EVB, which is my deviceSo some changes are made to adapt to the device, including. The Generic Configuration Editor is the graphical user interface through which developers may edit configurations for basic software modules that comply with the AUTOSAR standard Also, thirdparty software like MCAL modules or carmakerspecific modules can be easily integrated and configured with EB tresos Studio. The AUTOSAR Compendium – Part 2 covers the Basic Software & Microcontroller Abstraction Layer (MCAL) part of the AUTOSAR 42 specificationIt explains the functionality of the Basic Software Modules and their configuration Parameters The structure of the book corresponds to the Basic Software Layers and their functional Groups, down to the single Basic Software Modules.

MCAL stands for Microcontroller Abstraction Layer In the context of embedded software development, the MCAL can be defined as follows MCAL is a software module that has direct access to all the onchip MCU peripheral modules and external devices,which are mapped to memory. Automated Testing of HardwareDependent AUTOSAR MCAL software Petr Pomkla, NXP Semiconductors "The most costeffective way to build a reliable test system is to combine commercial offtheshelf components with simple, custombuilt parts ". Automated Testing of HardwareDependent AUTOSAR MCAL software Petr Pomkla, NXP Semiconductors "The most costeffective way to build a reliable test system is to combine commercial offtheshelf components with simple, custombuilt parts ".

Labels Autosar, Flash test, MCAL Post a Comment Newer Post Older Post Home Popular Posts AUTOSAR DEM Module After reading this article you will learn 1 What is DEM module of AUTOSAR 2 What Diagnostic Events, DTCs and DIDs 3 Brief about Ev Diagnostic stack in AUTOSAR. An internal watchdog driver belongs to the Microcontroller Abstraction Layer (MCAL), whereas an external watchdog driver belongs to the Onboard Device Abstraction Layer Therefore, an external watchdog driver needs other drivers (in MCAL) in order to access the microcontroller hardware.
